GW INSTEK GPP-2323 - 2 Channel Programmable DC Power Supply

Features

• 4.3”TFT LCD Display
• Supports Setting Value, Measurement Value and Output Waveform Display
• Load Function (CC, CV, CR Mode)
• Setting Resolution: 1mV / 0.1mA; Read Back Resolution: 0.1 mV / 0.1 mA
• Low Ripple Noise: ≦350 µVrms/ ≦2 mArms
• Transient Response Time: ≦50 µs
• Utilizing Hardware to Realize Over Voltage Protection / Over Current Protection / Over Temperature Protection
• Delay Function / Output Monitoring Function / Output Recorder Function
• Intelligent Temperature Control Fan Effectively Reduces Noise
• Sequential Output Function and Built-in 8 Template Waveforms
• The Output Recorder Function Records The Output Voltage & Current Parameters with A Minimum Recording Interval of 1 Second.
• Provides 10 Sets of Memory for Each Sequence/Delay/Recorder/Panel Setting Condition
• GPP-3323 Supports A USB (Type A) Output Terminal

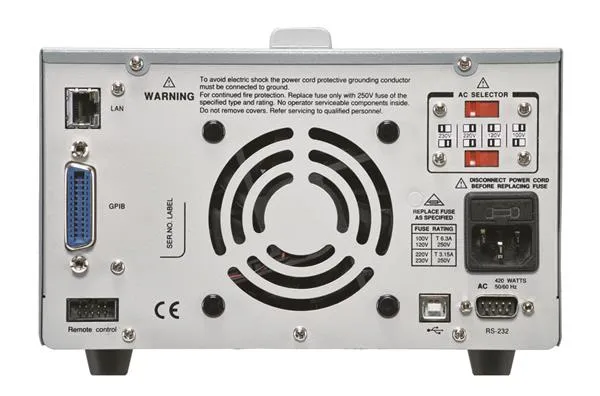

• Standard: RS-232, USB, Ext I/O ; Optional: LAN, GPIB+LAN
• Compatible with Commands of GPD-x303S Series
