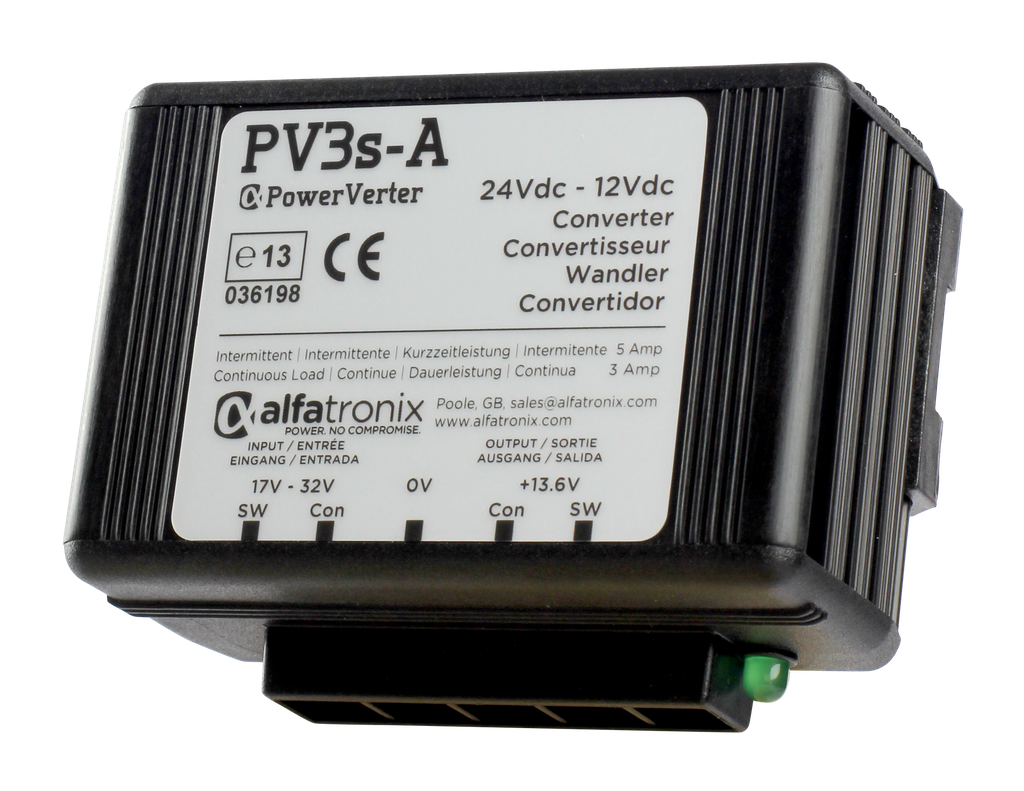

ALFATRONIX PV3s-A 3A 24/12V galvaanisesti erottamaton kytketty kaksoislähtöjännitemuunnin

Some automotive equipment, such as In Car Entertainment (ICE) usually has two links to the vehicle’s electrical system, one for security and one for switching the equipment on and off. The on/off function is controlled from the ignition switch so that when the ignition key is removed, the ICE equipment is turned off, preventing the battery from becoming discharged whilst leaving the memory back-up circuit still active. Alfatronix have developed three voltage converters, a 3Amp, 6Amp (continuous) and a 12A (continuous), which overcome these configuration problems. The Alfatronix converters mimic the 12V battery and 12V ignition function by providing two outputs, either of which can provide full power. One output is available whenever the 24V battery is connected. The other output is switched by the 24V ignition switch. Now the ICE equipment can be fitted to the 24V truck as simply as fitting it to a 12V car.
